What connectors do I use with the Luminus LED?

There are several connectors for different Luminus Devices.

This article defines which connectors can be utilized with which LED.

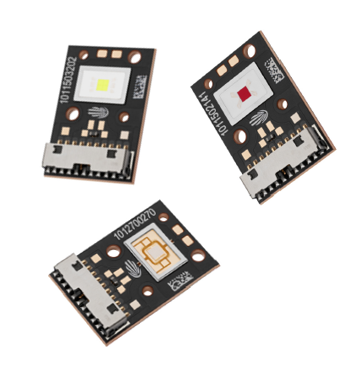

8-Pin Connector

Devices :

• PT-39
• PT-40
• CBM-25X
• CBM-50X
• CBT-39-UV
• CBM-40-UV

Mating Connector Information:

Connector Manufacturer: Molex: Part # 87439-0800

Connector Manufacturer: Tarng-Yu: Part # TU1512HNO-08-M5

Mating Connector Cable Assembly ordering part number (small quantity orders for evaluation purposes only): 960041 (TY) or 960027 (M)

--------------------------------------------------------------------------------------------------------------------

10-Pin Connector

Devices :

• PT-50
• PT-54

Mating Connector Information:

Connector Manufacturer: Molex : Part Number: 87439-1000
Connector Manufacturer: Tarng-Yu : Part Number: TU1502HNO-10-M5

Mating Connector Cable Assembly ordering part number (small quantity orders for evaluation purposes only): 960040 (Tarng-Yu)

Devices:

• CBT-50X-UV
• CFT-50X-Series

Mating Connector Information:
Connector Manufacturer: TE Connectivity (ERNI): Part Number: 484084-E

Cable Bundle from Luminus : 960066 (small quantity orders for evaluation purposes only)

--------------------------------------------------------------------------------------------------------------------

Low Voltage High Current Connectors

• CFT Series
• CBT Series
• CBM-90
• CBM-120 Series
• PT-120
• PT-121

Recommended connectors Anode and Cathode :

Panduit Disco Lok™ Series P/N: DNF14-250FIB or JST Manufacturing Co: SPS-61T-250 for AWG 16 to 14.

Panduit Disco Lok™ Series P/N: DNF10-250FIB or JST Manufacturing Co: SPS-91T-250 for AWG 12 to 10.

(Check NEC standards for ampacity of the power cable being used.)

Thermistor Connector (Male on Board) : GCT P/N WTB08-021S-F

Recommended Female : GCT P/N WTB06-020H-A or equivalent like MOLEX P/N 51146-0200 (Not recommended for new designs but still commercially available),

Cable Bundle from Luminus : 960026 (small quantity orders for evaluation purposes only)

Note : GCT part numbers are not directly purchasable from manufacturer at this time.

*Maximum Insertion Force ≤6 lbs. (26.7 N)

--------------------------------------------------------------------------------------------------------------------
