Looking for Color Tunable COB's?

Looking for Color Tunable COB’s

https://www.luminus.com/products/dynamic-cob/cct-tunable

Luminus provides a wide range of color tunable COB LEDs, ranging from 9 mm to 22 mm LES sizes with independent warm and cool channels to dial in the color temperature your applications need, from 6500K to 2700K or from 4000K to 1800K, see all the details Table 1.



The recently released Salud – Luminus Human Centric LEDs and RGBW options give luminaire designers a wide range of applications that can benefit from this technology including hospitality, museum, offices, schools, high-end retail, and hospitals, just to name a few.  Luminus has also partnered with a wide range of ecosystem partners to provide designers with an expedited time to market.  All the products are UL listed, have solid LM-80 data, and have RoHS and Reach documents available upon request.

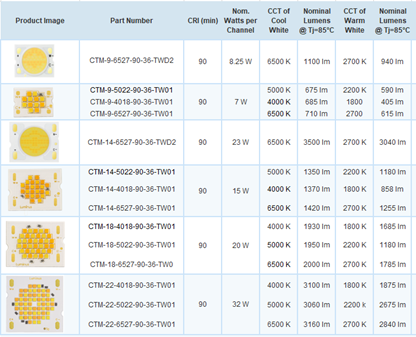

Table 1 CCT Tunable Modules

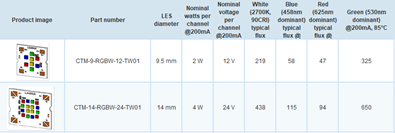

       Table 2.  Tunable RGBW CTM Modules

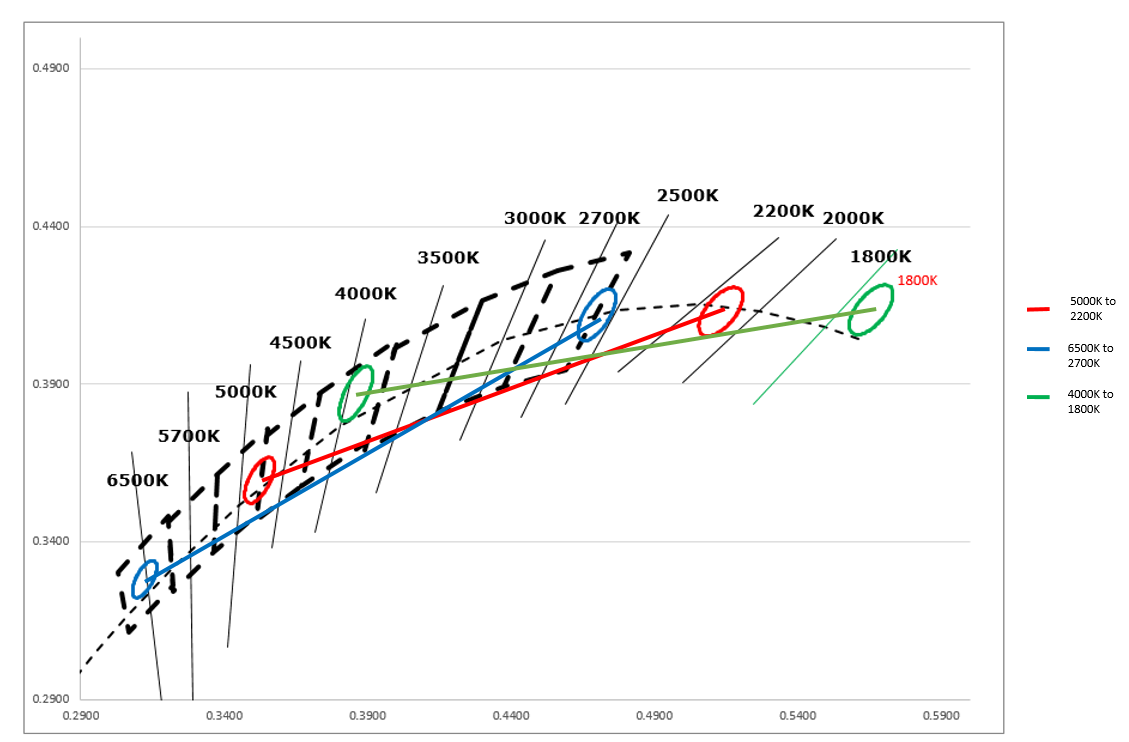

Chart 1.  CCT Ranges

Design files including the mechanical models and raytrace files are available.  For help with designing these modules for your products check out our application notes and help center, or contact [e-mail].

https://www.luminus.com/products/dynamic-cob/cct-tunable

https://www.luminus.com/resource/ecosystem/search?family=dynamicCOB

-----------------------------------------------------------------------------------------------------------------

Luminus Website https://www.luminus.com/

Luminus Product Information (datasheets): https://www.luminus.com/products

Luminus Design Support (ray files, calculators, ecosystem items: [power supplies, lenses, heatsinks]): https://www.luminus.com/resources

Luminus Product Information sorted by Applications:  https://www.luminus.com/applications

Where to buy Samples of Luminus LEDs: https://www.luminus.com/contact/wheretobuy.

--------------------------------------------------------------------------------------------------------------------

Technical Support Contact Information: [e-mail]

Sales Support Contact Information: [e-mail]

Customer Service Support Contact Information: [e-mail]
