How to figure out the COB product information from the customer part number (CPN)?

All Luminus COB products are packaged and labeled with part numbers. On the figure of the package label below, the customer part number is shown in number 2.

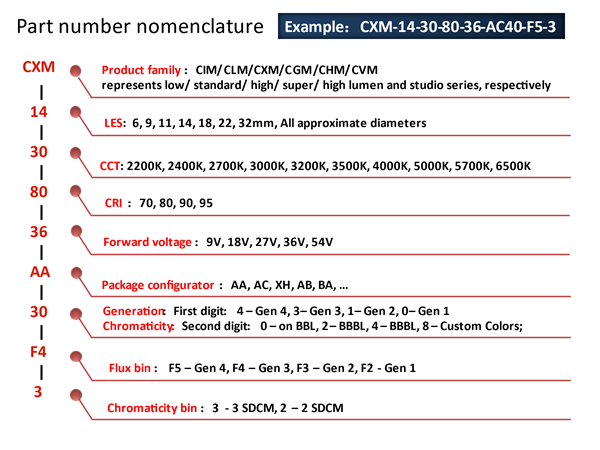

The part number designation is as follows:

Each configurator is explained as follows:

• Product family: "C" means chip-on-board and "M" means multi-die. The middle letter signifies the LED power level.
• LES:  Approximate LED emission diameter in mm
• CCT: The color temperature is the CCT configurator multiplied by 100. For example, a "30" in the CCT configurator represents a 3000K color temperature.
• CRI: The minimum color rendering index
• Package configurator: a 4-character configurator consisting of two alphabet letters followed by two numbers. (e.g., AA40, AC42, TC50, TC52, TE50 etc.)

The two alphabet letters signify different substrate types. AC and TC substrates with the mouse-bites screw hole are compatible with COB connectors. AA and TA substrates with closed screw holes are preferred in manual soldering designs since it is a little bigger. The first letter T stands for the substrate with a Sulfur resistance process.

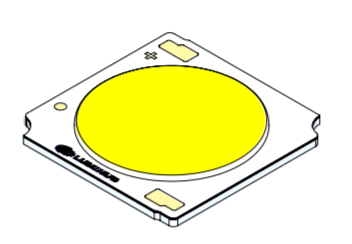

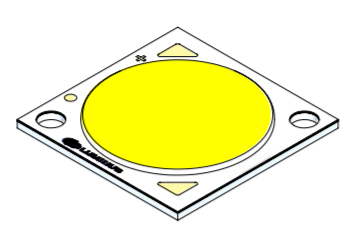

    AA and TA substrate                                           AC and TC substrate

• Generation and chromaticity: The two-digit number next to the package configurator signifies the generation and the chromaticity. The first digit number represents the generation of the Luminus COB technology. The Generation 4 COBs provide efficacy >140 lm/W @3000K, 90 CRI products, and 180 lm/W @ 5000K, 70 CRI products. The LUX series (Gen 5) features high efficacy > 160 lm/W @3000K, 90 CRI products, and narrow-band red phosphor for enhanced color saturation, R9 values.  The High-Density Gen 4 (BH40) features Robusto technology for industry-leading lumen maintenance and color stability over time at high current and up to Tc = 120°C. BH40 products are designed for the highest lumen density per emitter area (>7,000 lm/cm²) providing highest center-beam-candle-power (CBCP).

Configurator	Categories
30, 32, 34, 38	Gen 3
40, 42, 44, 48	Gen 4
50, 52	Lux / Gen 5
60, 62	Gen 6
BH40	High-Density Gen 4

The second digit number represents the chromaticity of the LED. A "0" signifies the Standard LED Series with the center color point on the black body locus (BBL), a "2" signifies the Sensus^TM LED Series with the center color point ~6 SDCM below the BBL, a "4" signifies the Xtreme Sensus^TM LED Series with the center color point ~12 SDCM below the BBL, and an "8" signifies the custom color points. The figures below show the chromaticity bin structure on 1931 CIE color space

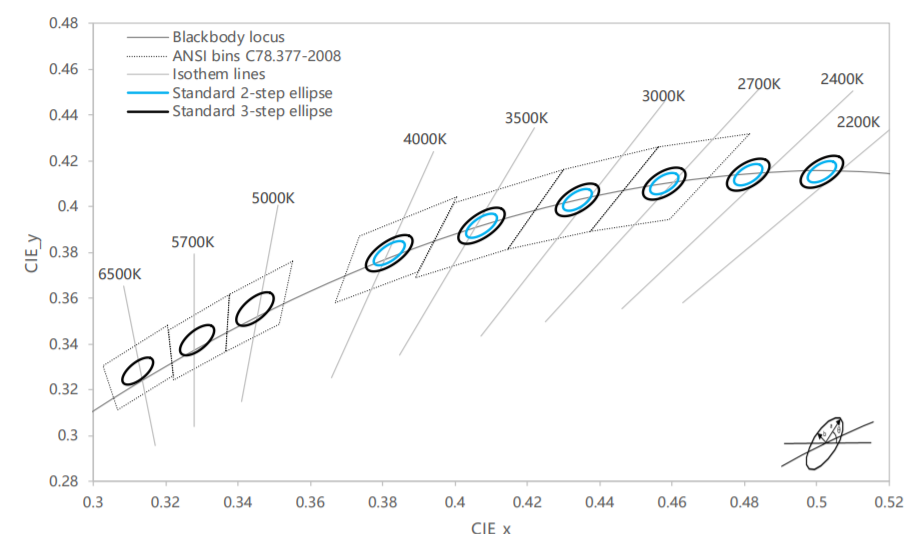

Standard LED Series (30, 40, 50, 60)

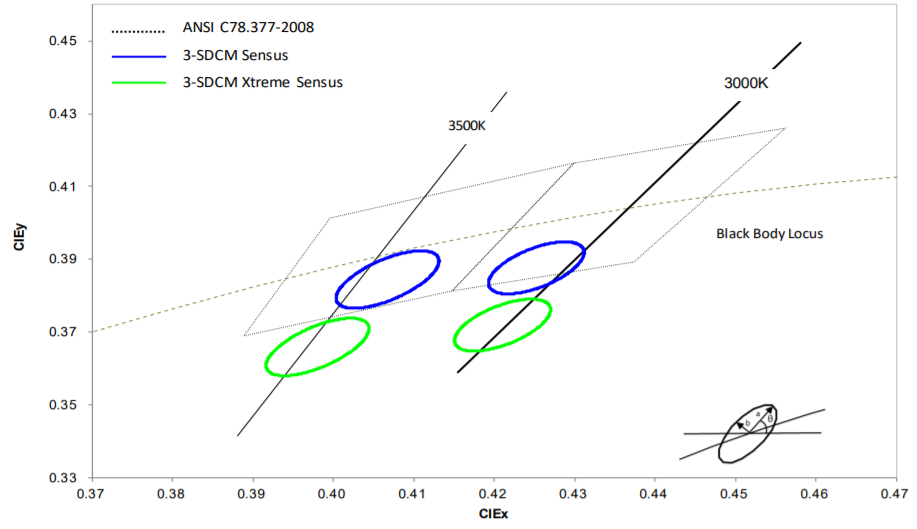

Sensus^TM LED Series (32, 42, 52, 62) and Xtreme Sensus^TM LED Series (34, 44)

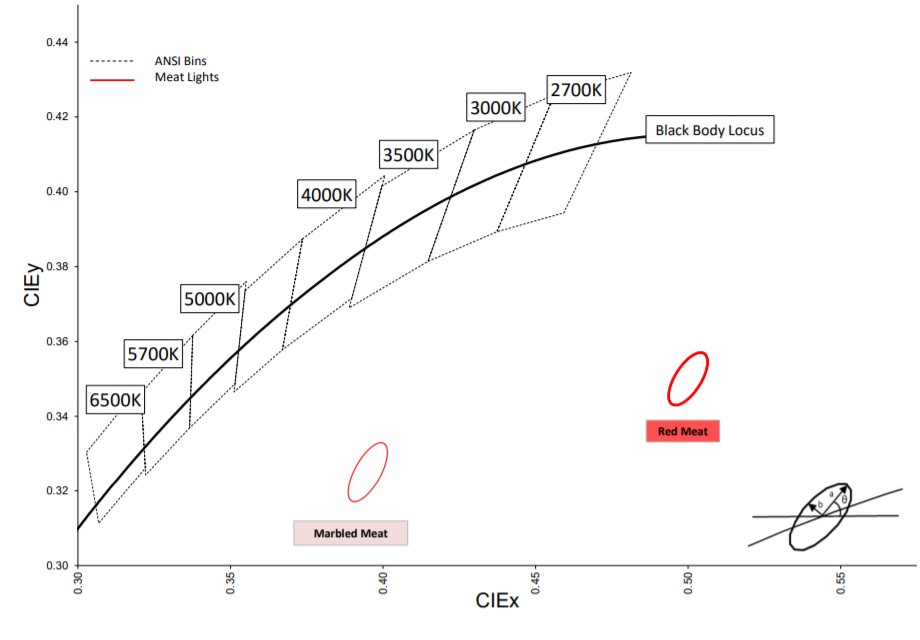

Custom Color LEDs (38, 48)

The table summarized the chromaticity configurators of standardized color points with the corresponding series:

Configurator	Series
30,40,50, 60	Standard
32,42,52	Sensus
34,44	Extreme Sensus
38,48	Custom Color

Luminus also provides specialized LED series for accurate color rendering for different applications such as PerfectWhite™, SmoothWhite, Salud™ and Hospitality LED series. The package configurators are listed in the table:

Configurator	Series	Features
PC32	Perfect White	Full spectrum 90+ CRI with the cyan gap filled and enhanced red, R9~97
TS31	Smooth White	Natural light broad spectrum with 95+CRI and low blue
TU31	Salud COB	Enhanced spectrum for high melanopic human-centric daytime lighting
TC41	Hospitality	Warm CCTs with high-color rendering ideal for hospitality and retail applications.

--------------------------------------------------------------------------------------------------------------------
