All Luminus LED products are packaged in an ESD bag and labeled on the package and reel with part numbers. In figure 1 below, shows what each of the items on the reel label means.

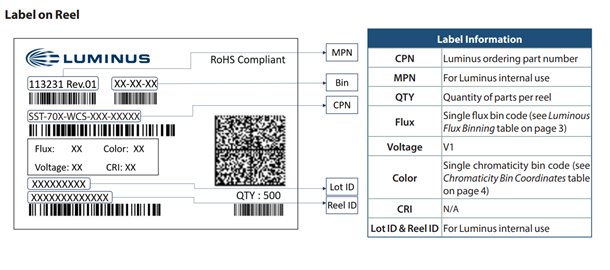

Figure 1: Label on Reel
The part number designation is as follows:

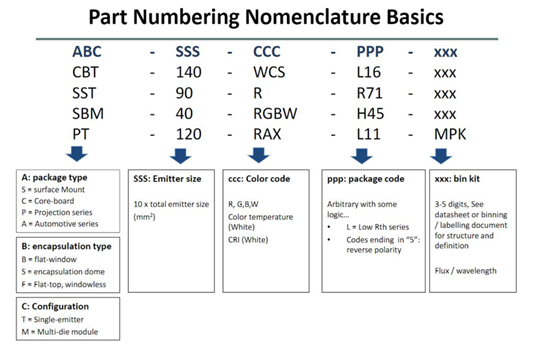

Figure 2: Part numbering basics

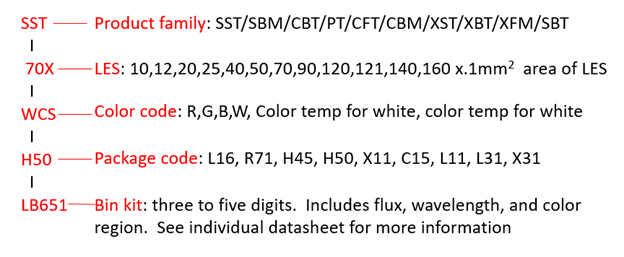

Figure 3. Example of typical Luminus part number.
Example:
Ordering part number: SST-70X-WCS-H50-LB652
SST- (S) Surface mount, (S) Dome, (T) single emitter
70X – (70) 7.0 mm2 LES size with (X) multi-Junction. See figure 4 below.

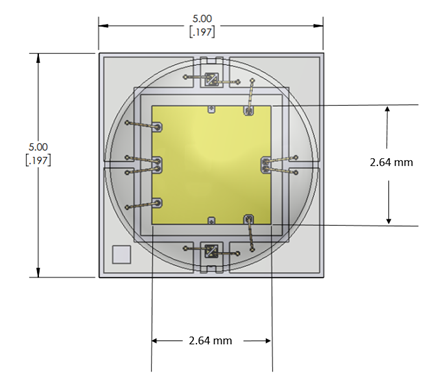

Figure 4: LES size
WCS – (W) White, (C) cool white, (S) standard CRI >65
H50 – Package code
LB651 – (LB) Flux bin= 1290 min lumens, (651) chromaticity bin. See binning chart below from datasheet in figure 5.
Figure 5. Chromaticity Binning Diagram
For more information, visit individual LED technical datasheets for specific parts. COB’s customer part number definitions can be found here: CPN COB’s. Looking for Luminus footprints, symbols, and design files visit SnapEDA and help center article.
--------------------------------------------------------------------------------------------------------------------
Luminus Website https://www.luminus.com/
Luminus Product Information (datasheets): go to the main page and select Products and then select the type of product you are interested in.
Luminus Design Support (ray files, calculators, ecosystem items: [power supplies, lenses, heatsinks]): go to the main page and select Resources & Tools and select the item you are interested in.
Luminus Product Information sorted by Applications: go to the main page and select Applications.
Where to buy Samples of Luminus LEDs: https://www.luminus.com/contact/wheretobuy.
--------------------------------------------------------------------------------------------------------------------
Technical Support Contact Information: techsupport@luminus.com
Sales Support Contact Information: sales@luminus.com
Customer Service Support Contact Information: cs@luminus.com
