Recommended Pick and Place Tools for Luminus LEDs

https://download.luminus.com/datasheets/Luminus_APN_APN-002819.pdf

This Application Note provides guidance for surface mount technology (SMT) assembly of LED devices using automatic placement machines. The key goal is to achieve damage-free processing of LEDs during the pick and place process. To do this, it is important to use appropriate and individually tailored pick and place tools known as nozzles. Information is provided on important parameters that need to be considered for LED assembly processes. These include technical specifications about the LED packages and process parameters for the placement equipment.

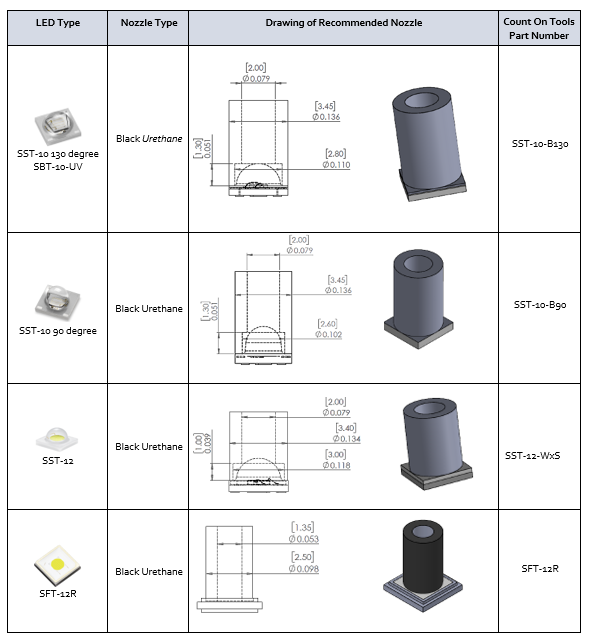

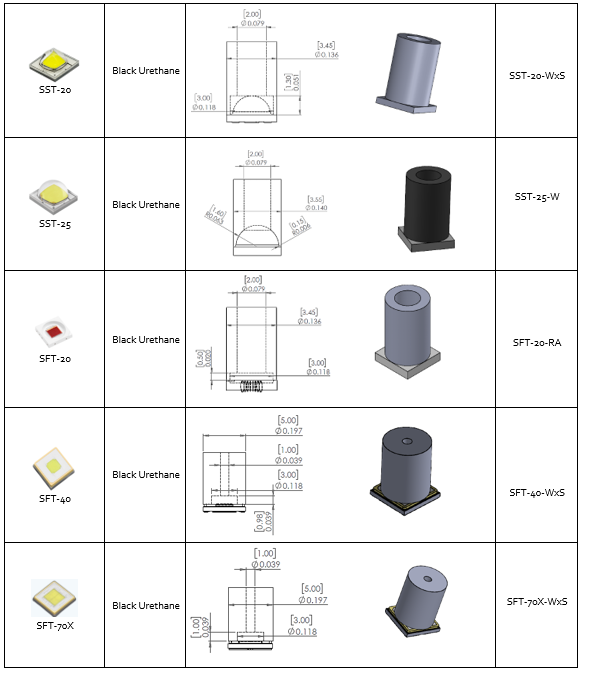

Table 1.  Recommend Nozzles

--------------------------------------------------------------------------------------------------------------------
